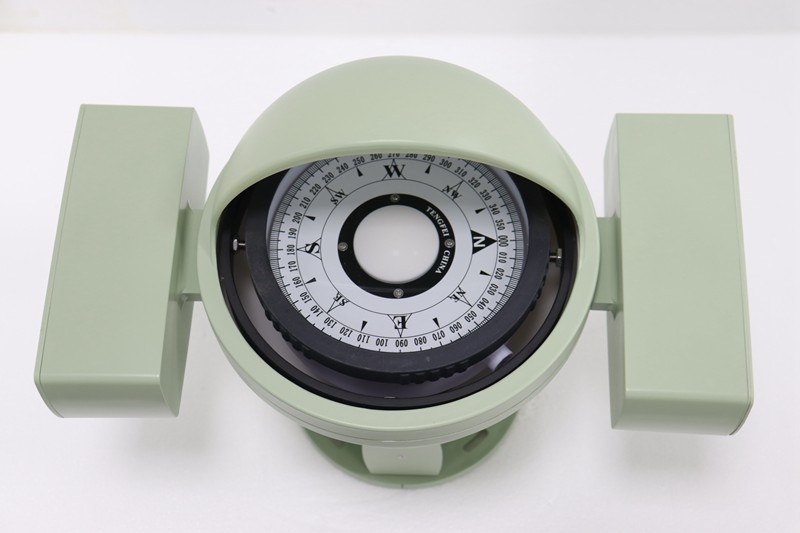

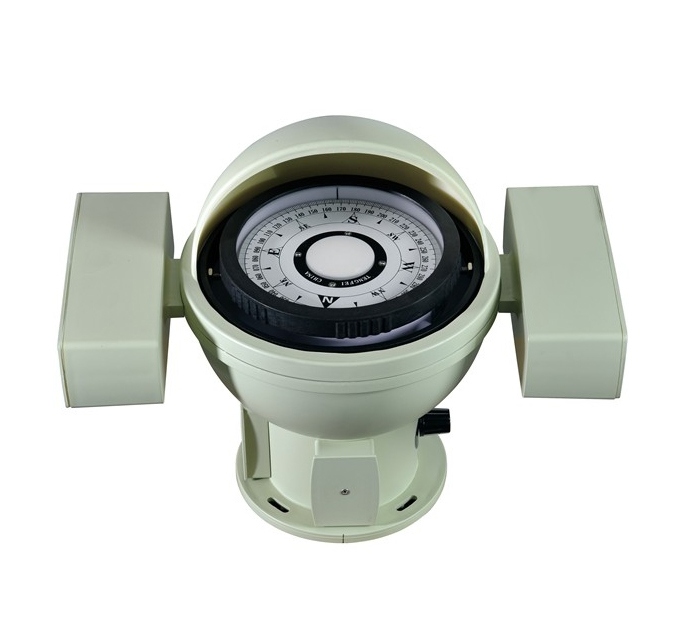

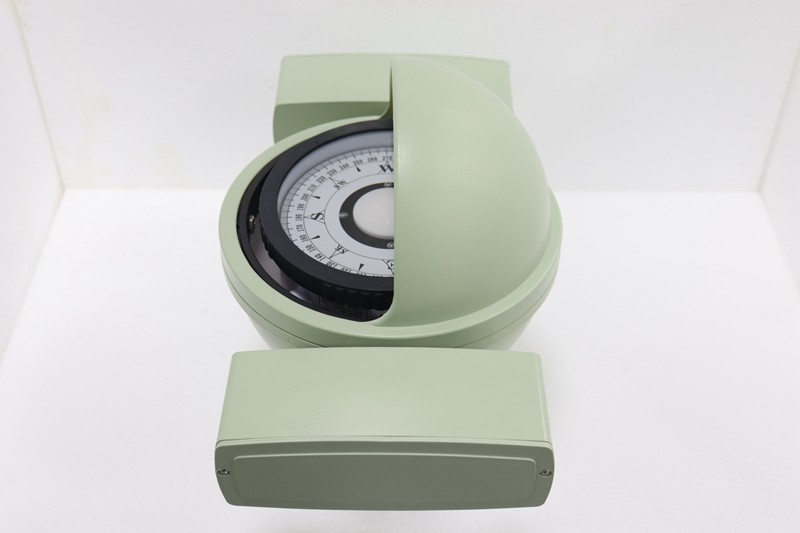

CPT-130C Table Model Magnetic Compass

Product Description:

CPT-130C Table Model Magnetic Compass is a sort of liquid magnetic compass with excellent performance and reliable working. It is designed and manufactured in accordance with the national standard ISO25862 (2019) Ships and Marine Technology - Marine Magnetic Compasses, Binnacles and Azimuth Readers and completely complies with the required standard of the relevant navigation equipment regulated by ISO9001-2015 and IMO.

The product features a simple structure, precise direction, stable performance, and convenient usage. It can be used as a steering compass on large and mid-sized motorized fishing boats and small steel ships. It is an essential navigation instrument for ships.

Technical Parameter:

Item:	Data:
Dial Diameter	ɸ 130mm
Dial Graduation	0°~360°, 1° per division
Operating Temperature	-30°C~+60°C
Indication Error	≤0.5°
Stabilization Time	(T=20±3℃, H=38μT) ≤35.78s
Semi-period	(T=20±3℃, H=38μT) ≥8.27s
Friction Error	(T=20±3℃, H=38μT) ≤0.08°
Main Semicircular Deviation Correction of Energy	1°～40°
Quadrant Deviation Correction	1°～5°
Illumination Power Supply	DC24V (direct current)
Dimension	350210280mm
Outer Box Dimension	410260335 mm
Mounting Hole Dimension	Hole Spacing: 123mm Aperture: ф6mm
Total Weight	4kg

Components of a set of instruments:

Item:	Quantity:
CPT-130C Binnacle Stand	1 set

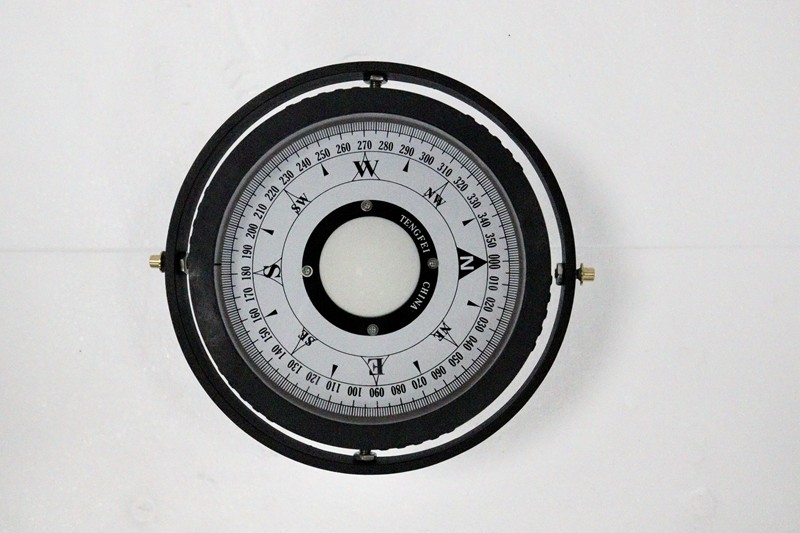

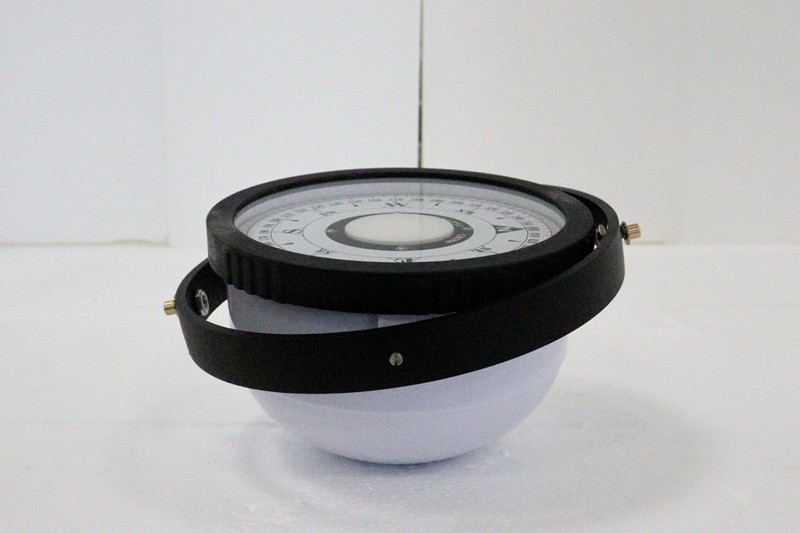

CPT-130C Magnetic Compass	1 set
Compass Cap	1 set
Calibration Equipment Tools	1 set
	a. Main Hemisphere Self-Calibration Magnetic Rods	8 roots (5*50mm, strong/medium / weak)
	b. Quadrant Self-Calibration Pure Iron Pieces	8 pieces (180600.5)
Spare Parts Box	a. Gyro Supplemental Fluid	1 bottle
	b. Fluid Sealing Ring	1 piece
	c. Fluid Filling Hole Screw	1 piece
	d. Fixing Screw	4 pieces
Providing Documents	a. Instruction manual	1 copy
	b. Asbestos-free certificate	1 copy
	c. Quality certificate	1 copy
	d. Packing list	1 copy
	e. Ship Inspection Certificate (CCS) / machine certificate	1 copy
